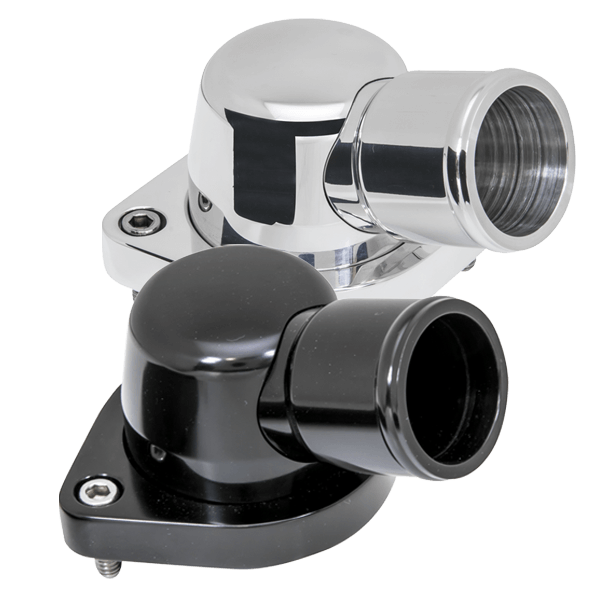

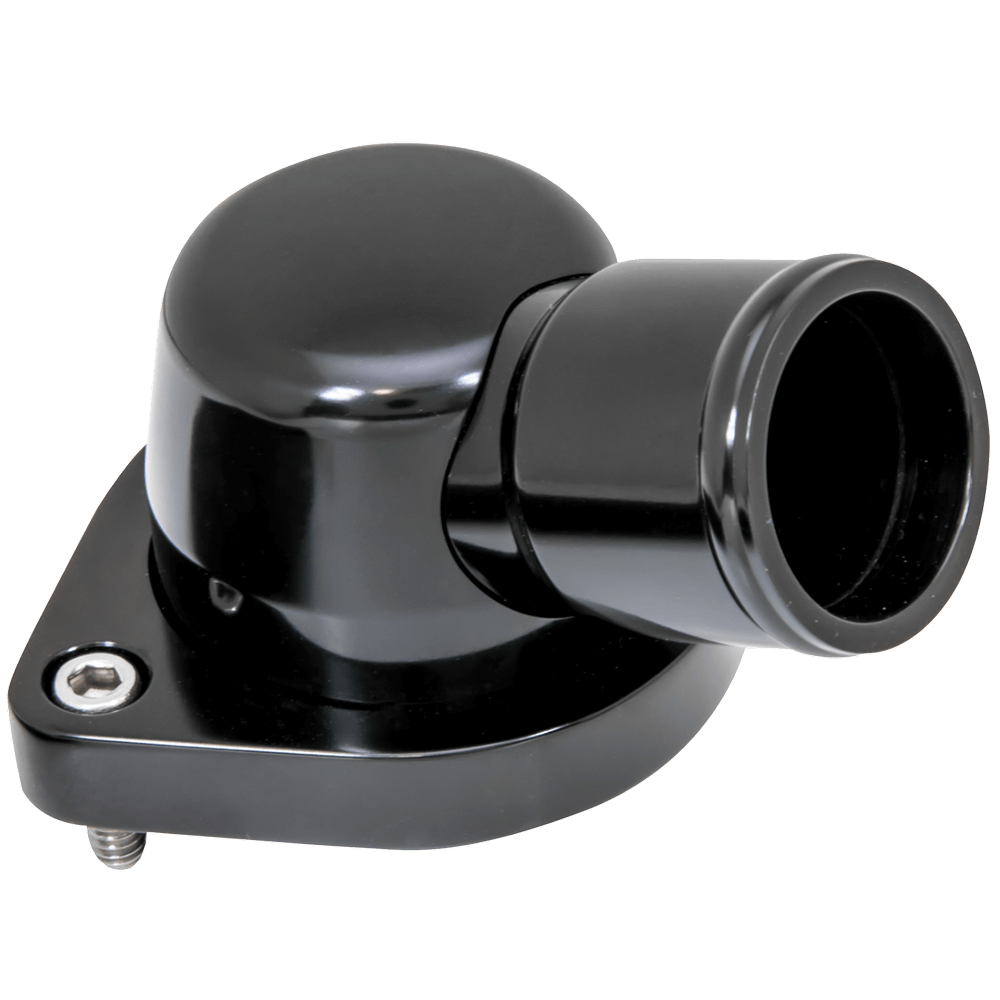

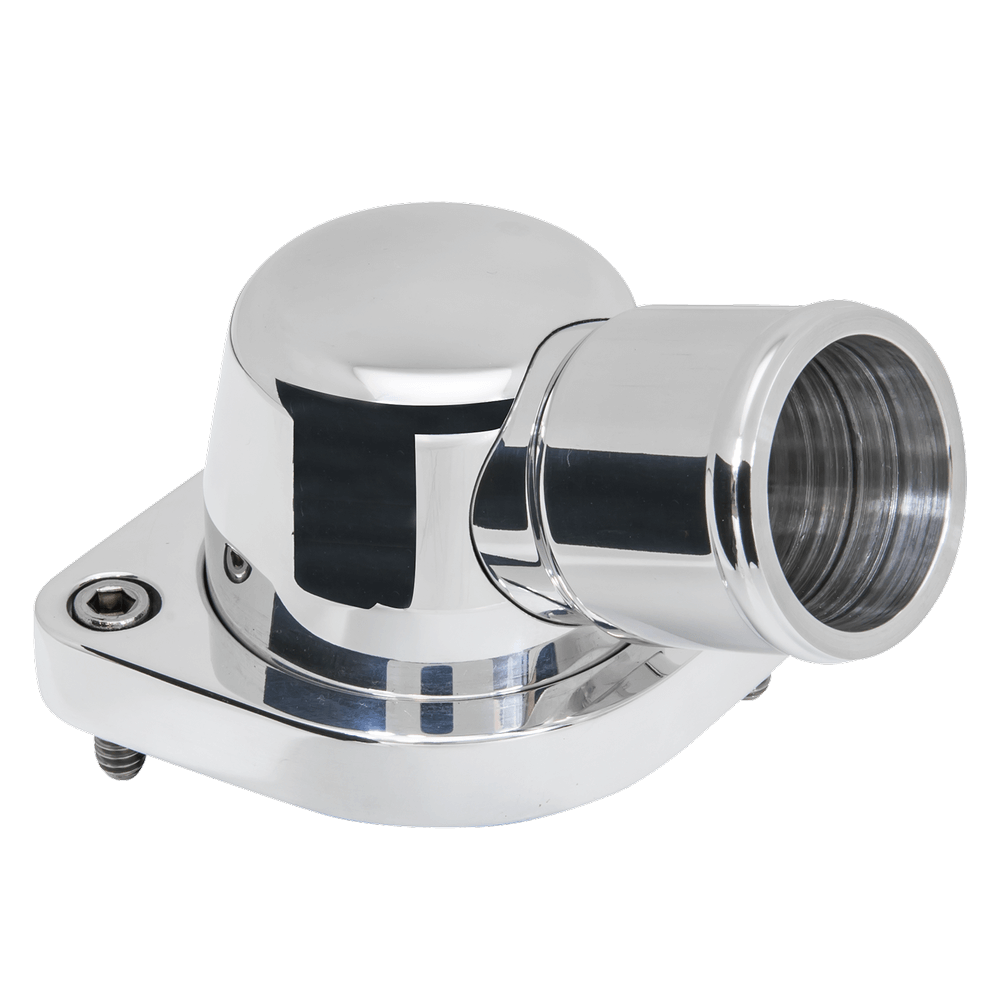

2010 - Up LS Thermostat Housing 15 Degree Swivel
2010 - Up LS Thermostat Housing 15 Degree Swivel
2010 - Up LS Thermostat Housing 15 Degree Swivel
2010 - Up LS Thermostat Housing 15 Degree Swivel
2010 - Up LS Thermostat Housing 15 Degree Swivel
2010 - Up LS Thermostat Housing 15 Degree Swivel

2010 - Up LS Thermostat Housing 15 Degree Swivel

Select Your Finish

2010 - Up  LS water pumps that have a 1.97” thermostat hole in the pump and a 3.03” center-to-center mounting bolt hole. Works with 2010 and Newer GM LS Crate Motors and Billet Specialties LSA Tru Trac with Edelbrock 8894 water pump.

Features:
  • Precision Machined from 6061-T6 Billet Aluminum
  • Stainless Mounting Hardware
  • Works with LS-style Thermostat and Seal (see below for part numbers)
  • Made in the USA
  • Includes 2- M6 X1.0 X 16mm stainless socket head cap screws for installation.

Fits:

  • Billet Specialties LSA Tru Trac System
  • GM 2010 and Newer LS Series Crate Motors.
  • Edelbrock 8894 LS Water Pumps
  • For 1-1/2” Radiator Hose
The hole diameter in the pump will have a 1.97” thermostat hole in the pump and a 3.03” center-to-center mounting hole.
Recommended Thermostats;
  • Stant P/N 15158 187°
  • Gates P/N 34198S 187°
  • AC Delco P/N 131160 190°
