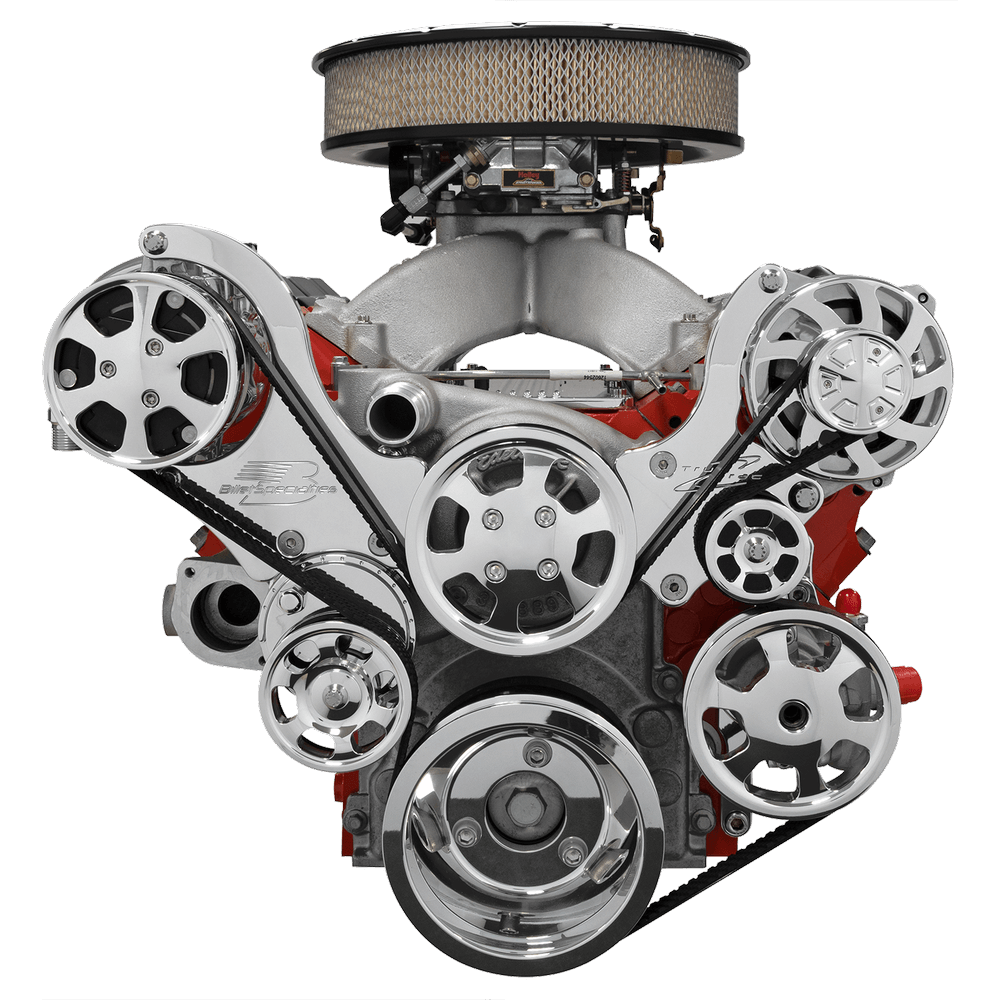

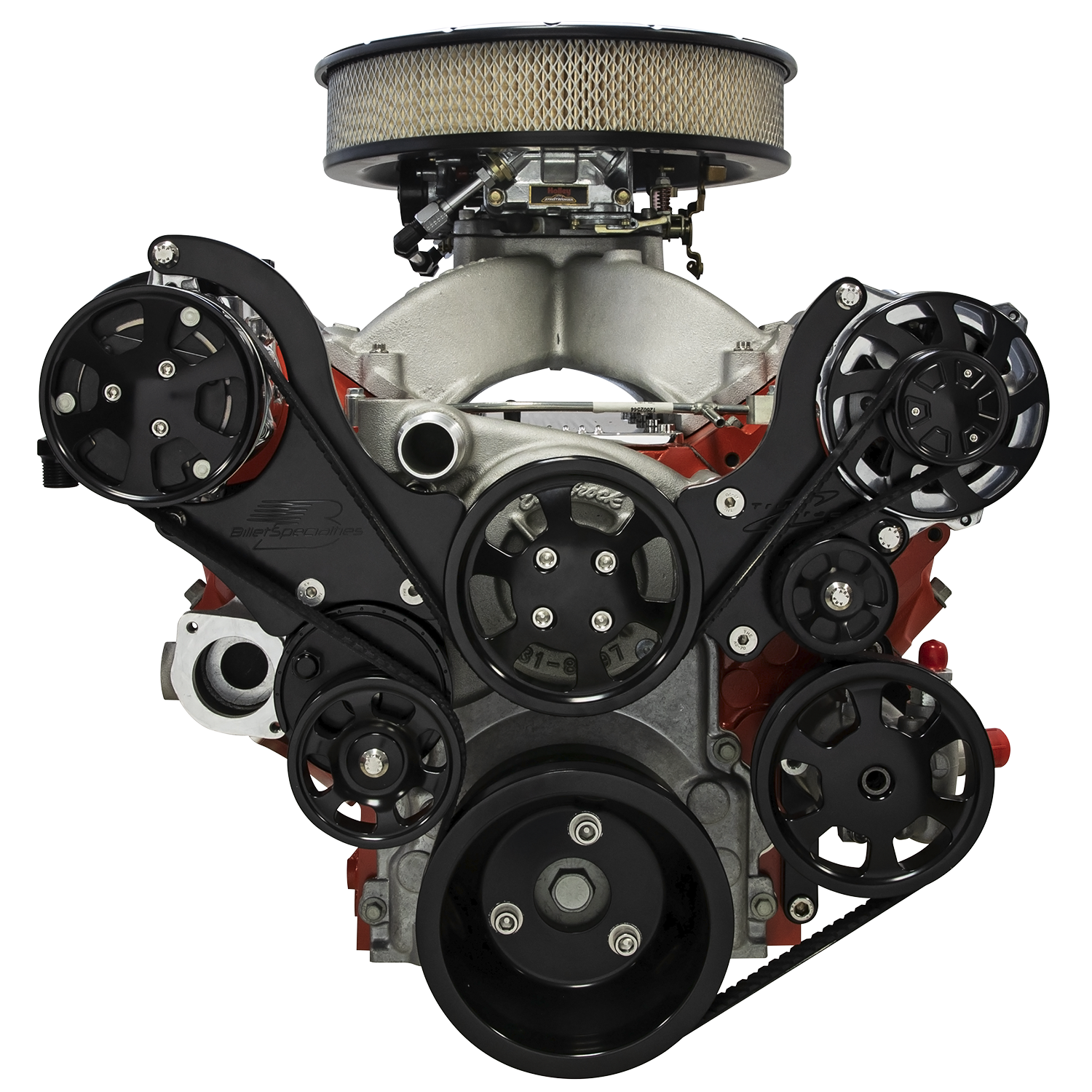

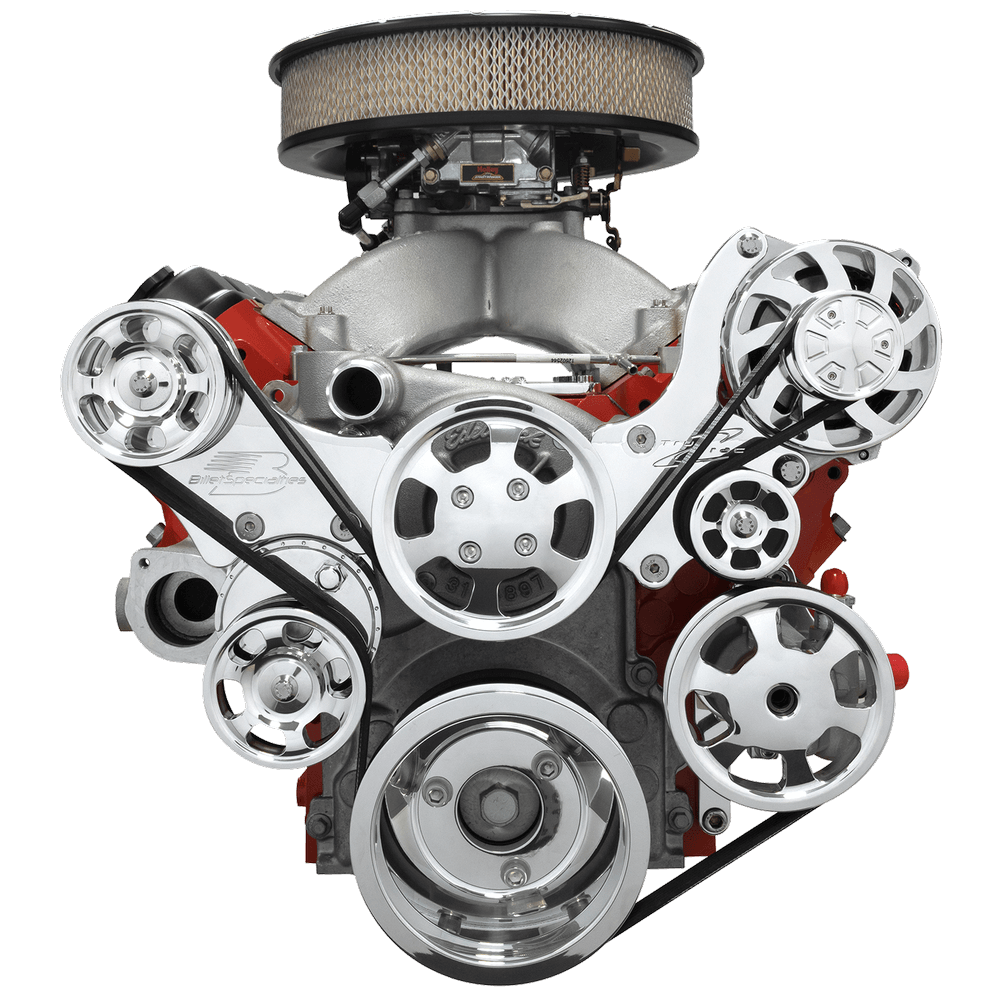

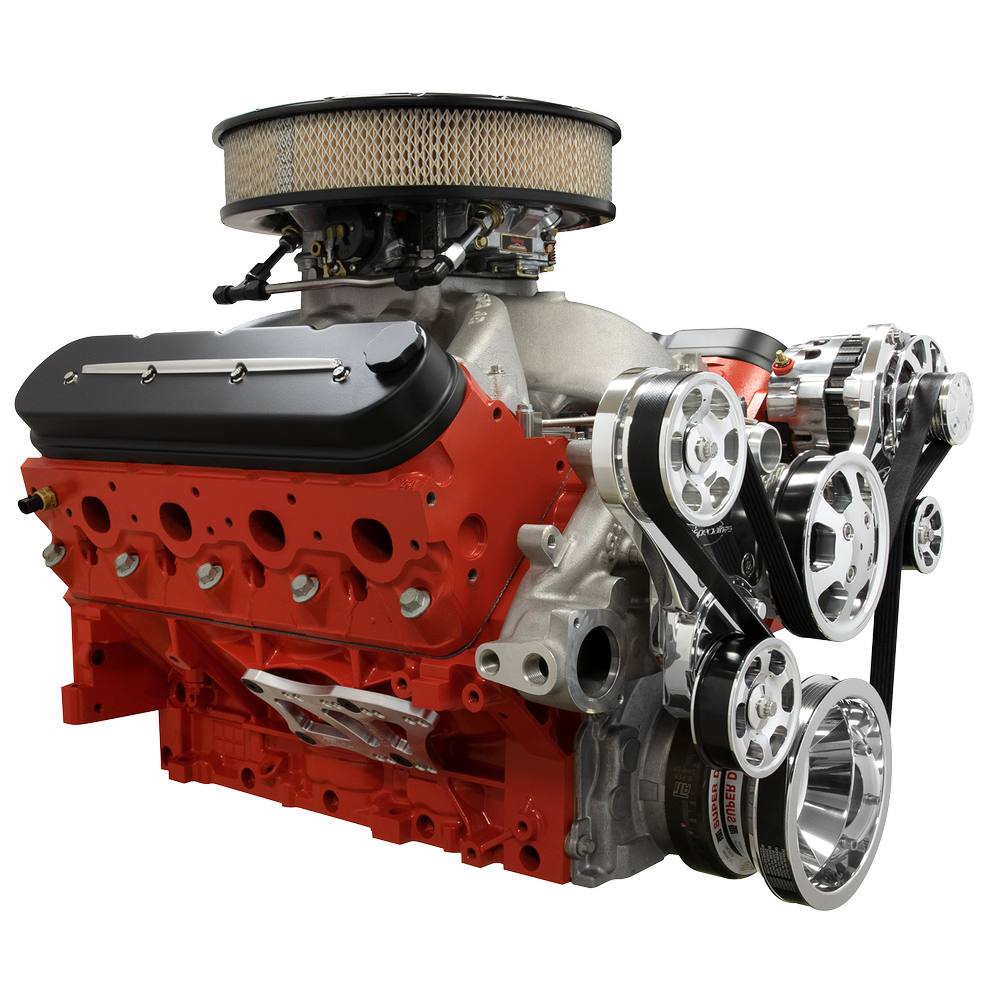

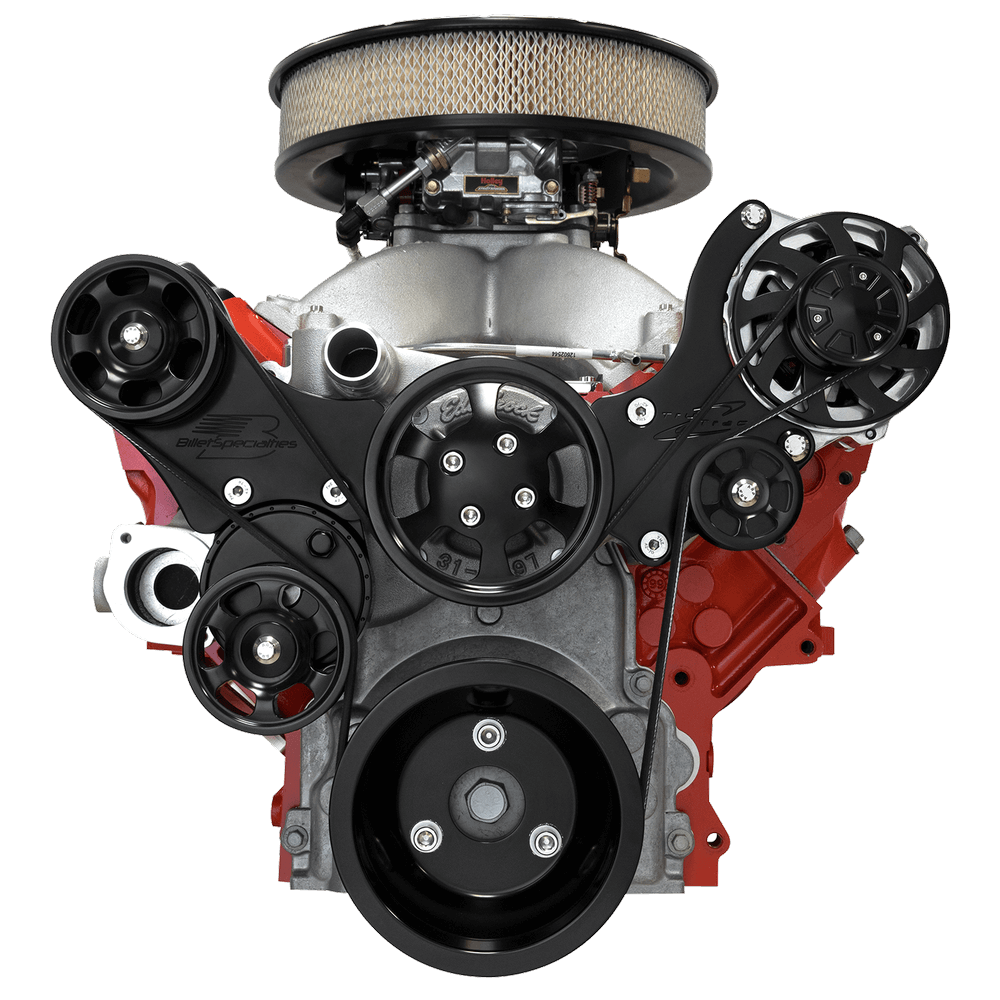

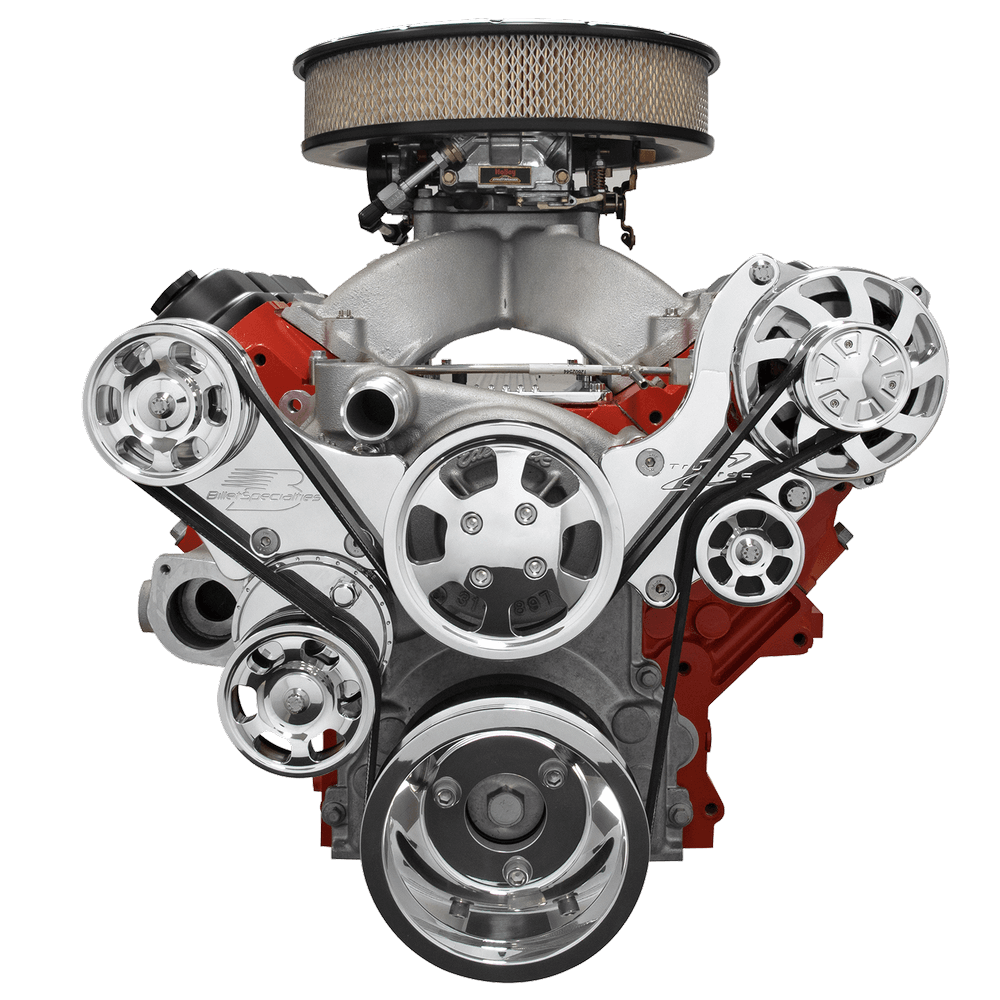

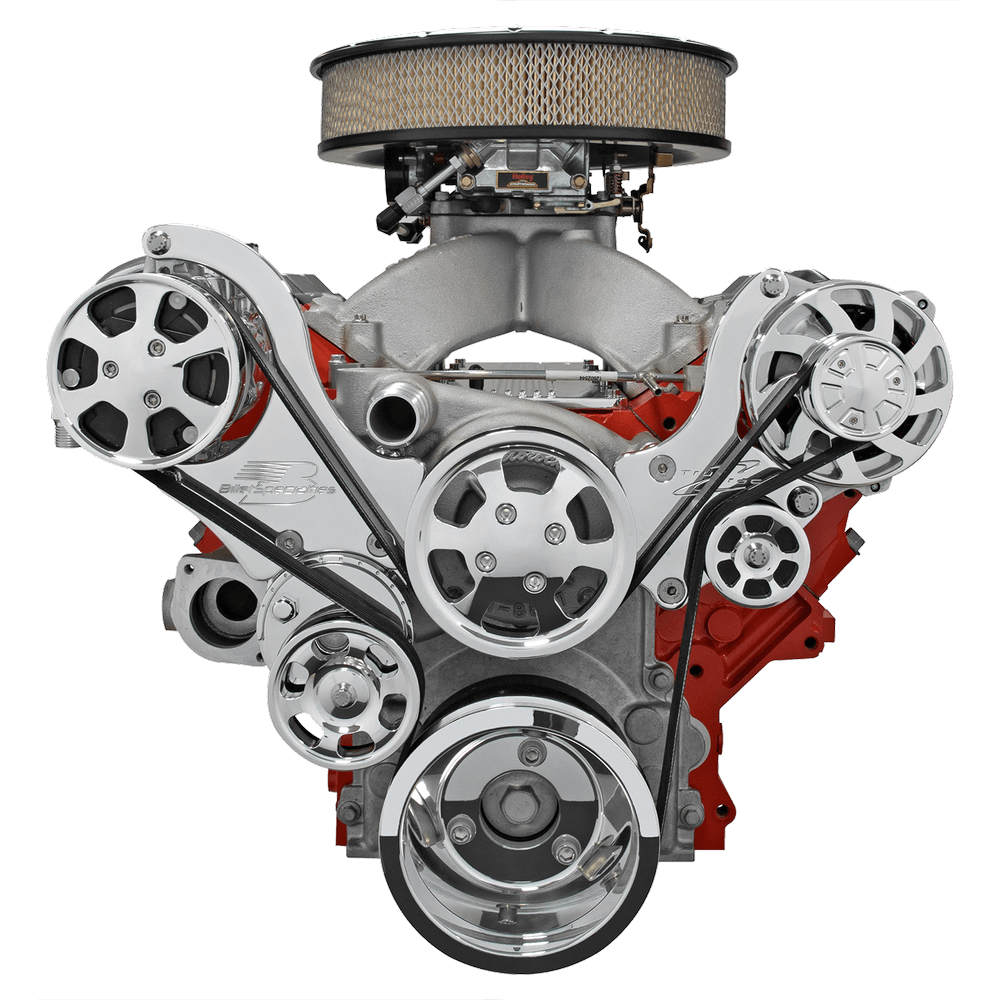

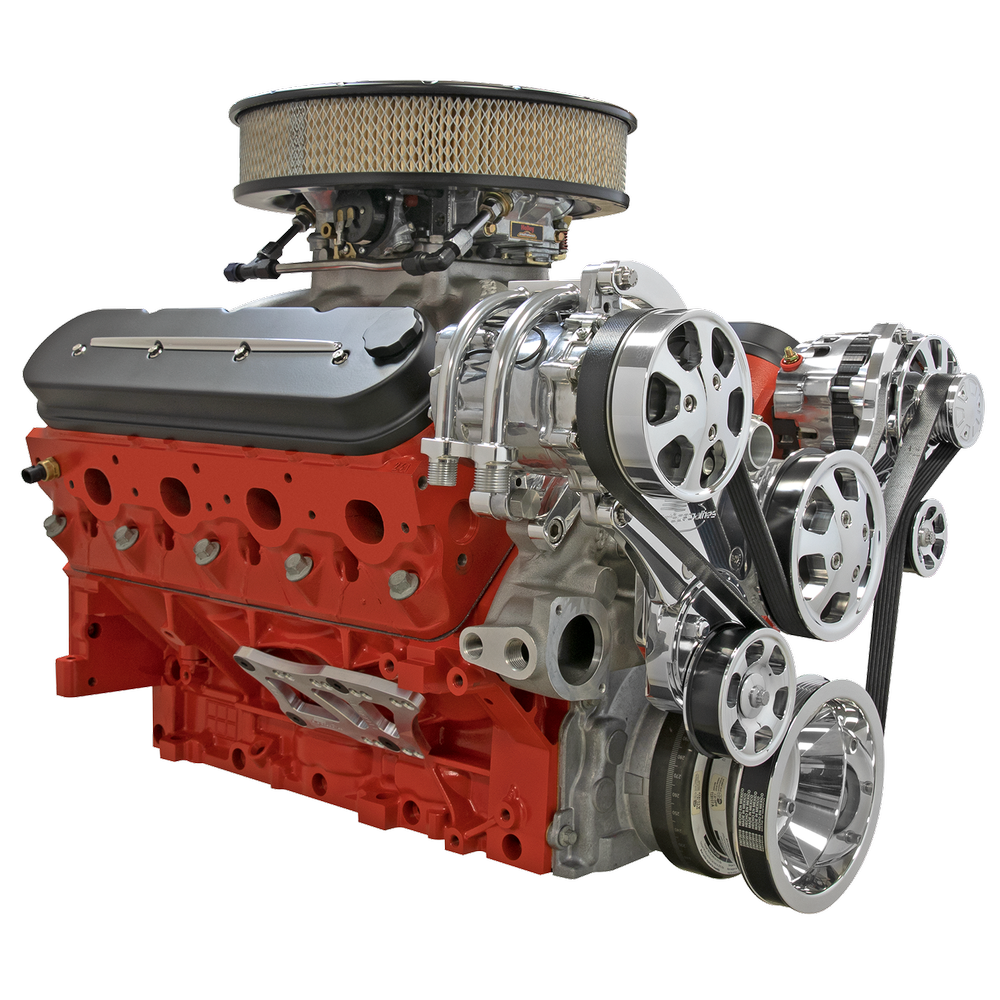

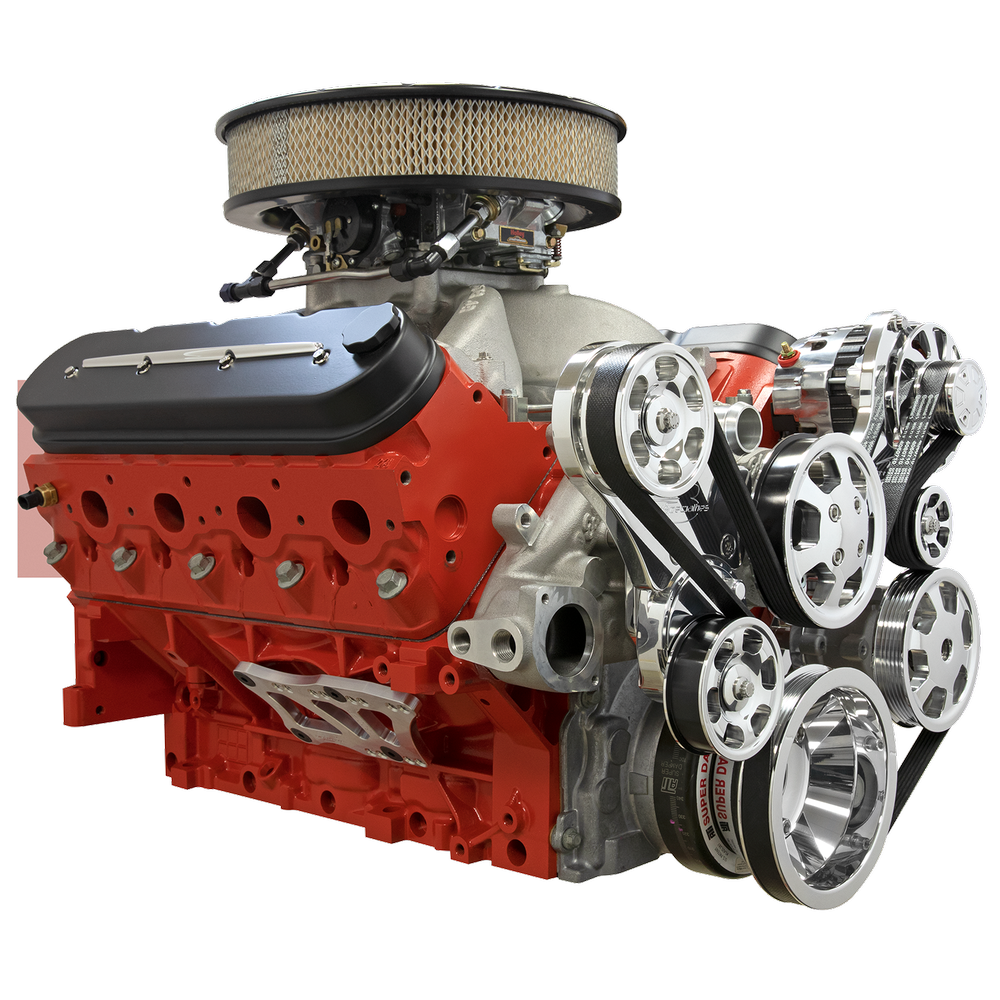

Billet Specialties LS Tru Trac Serpentine Front Drive System

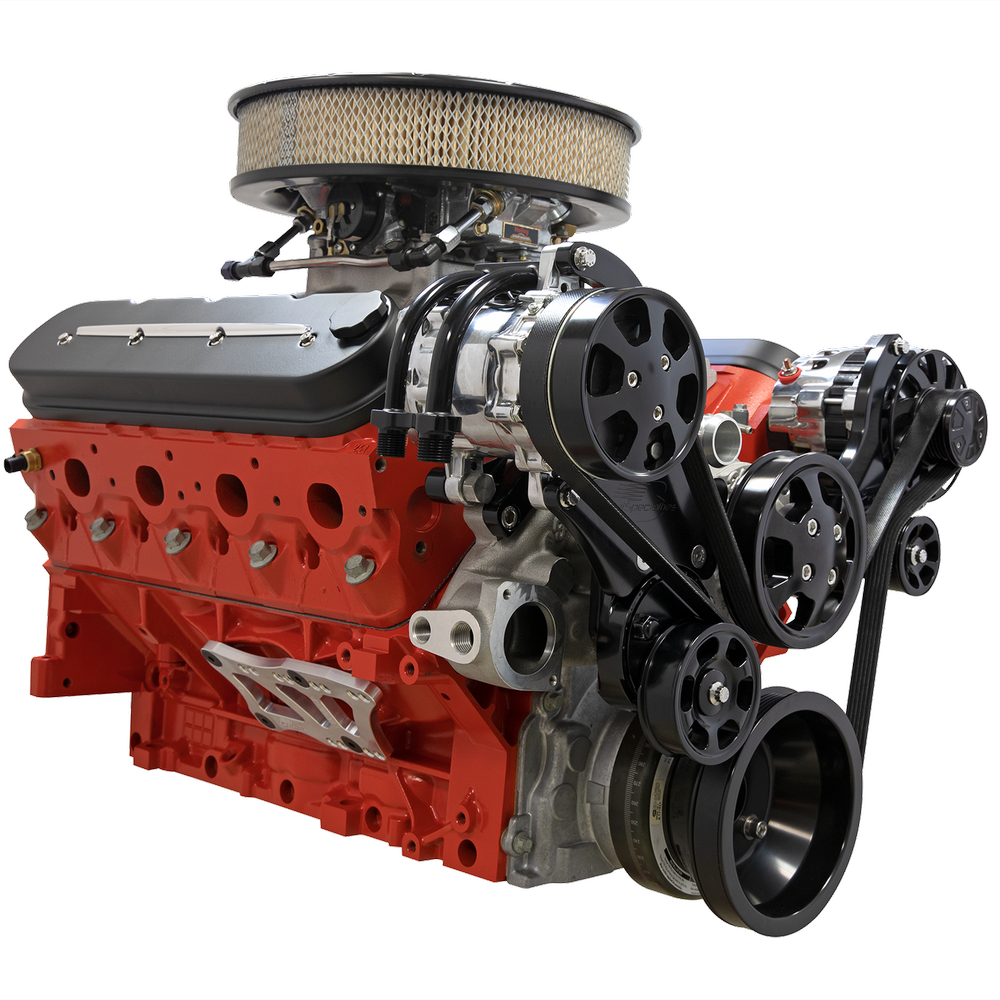

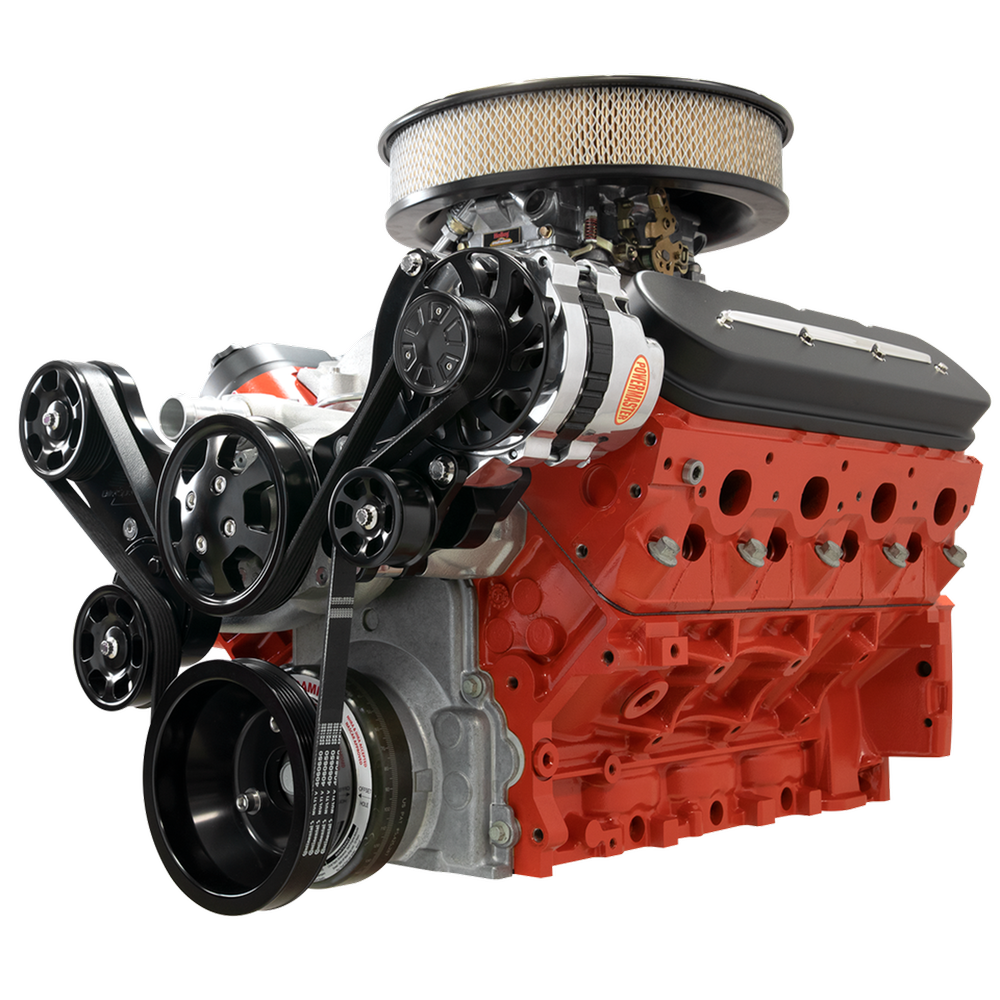

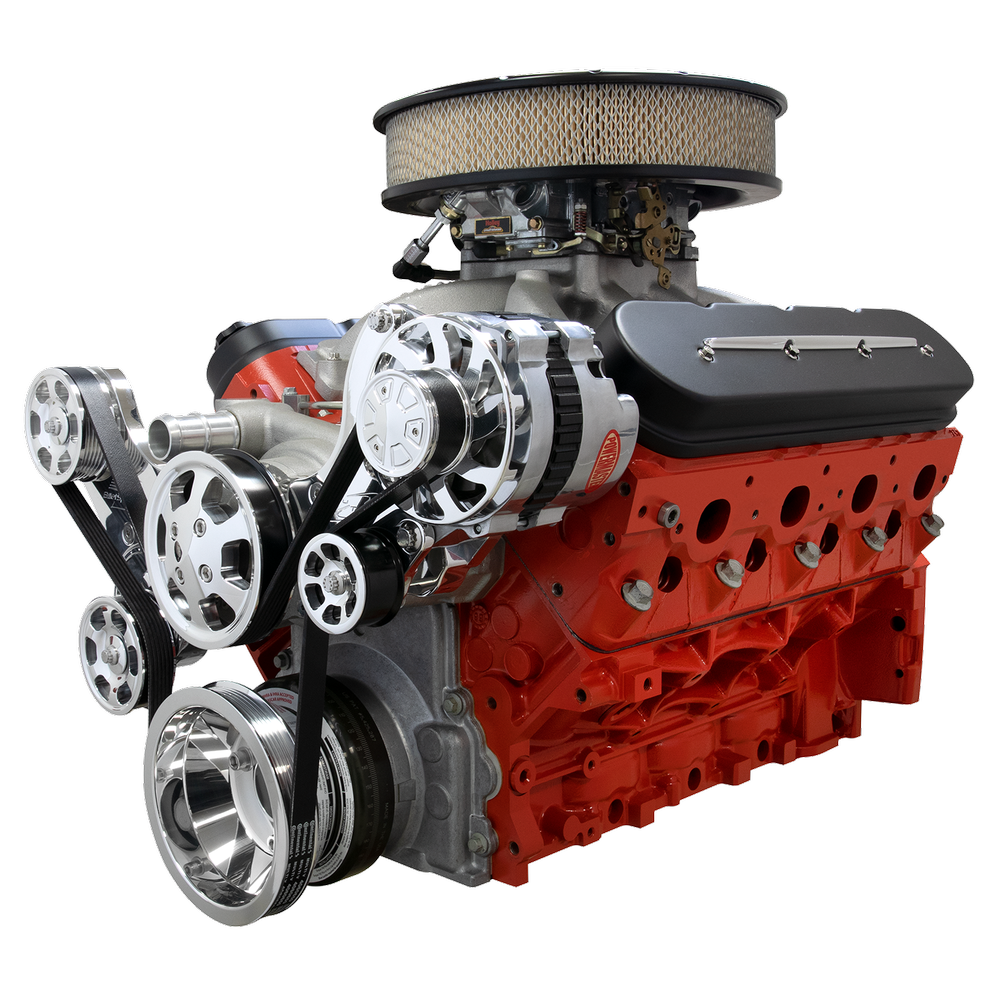

Tru Trac Serpentine System - LS

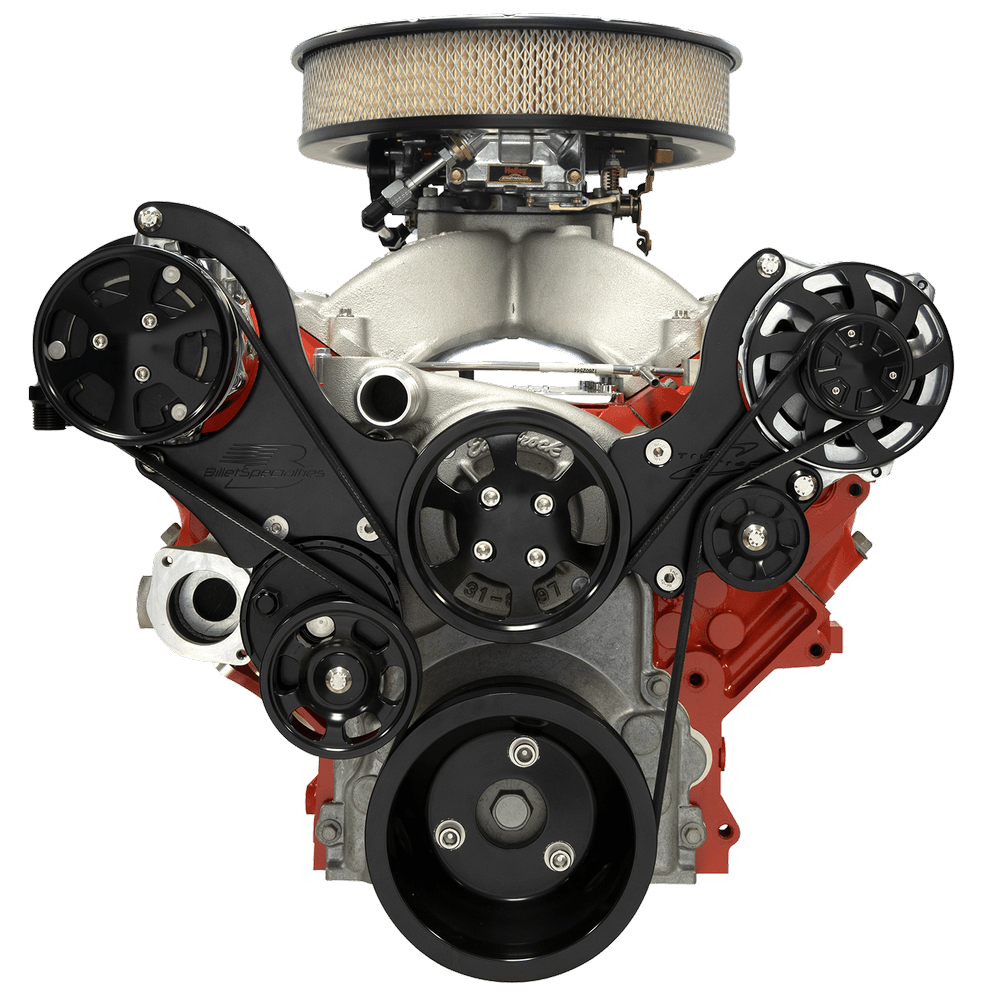

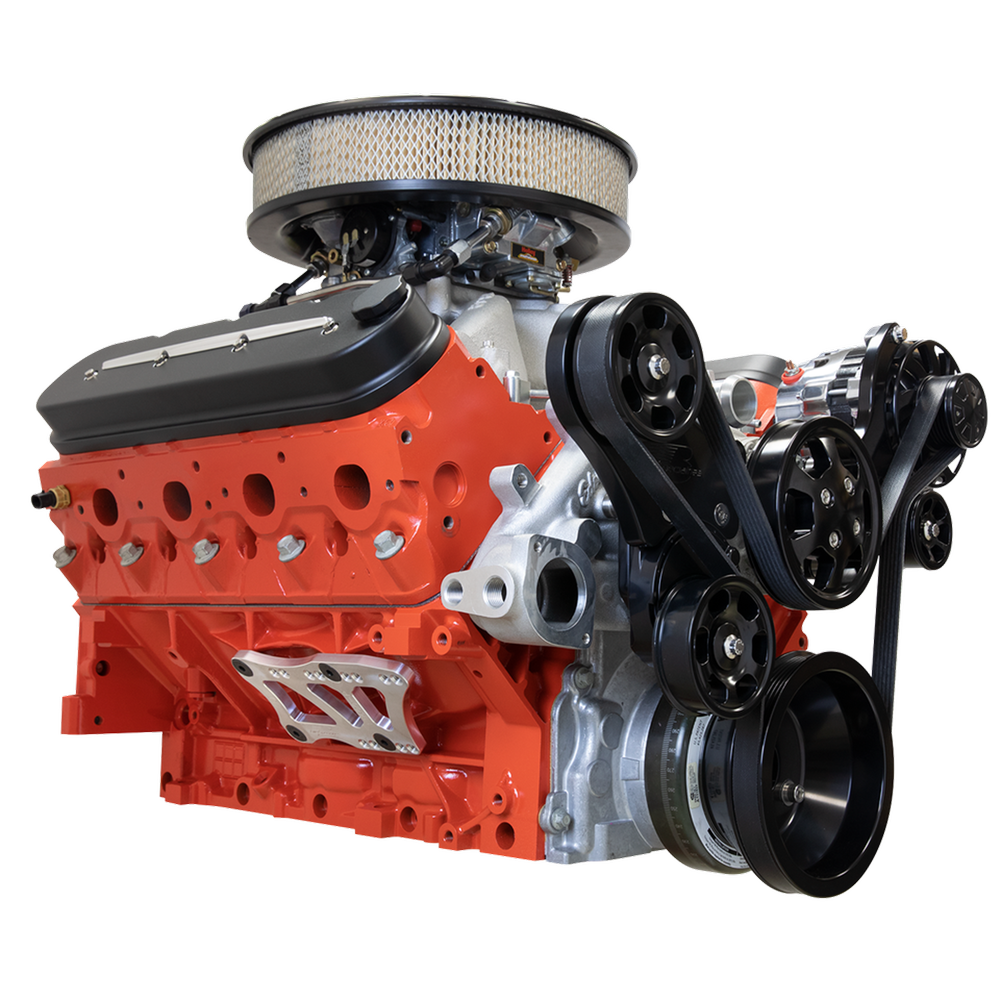

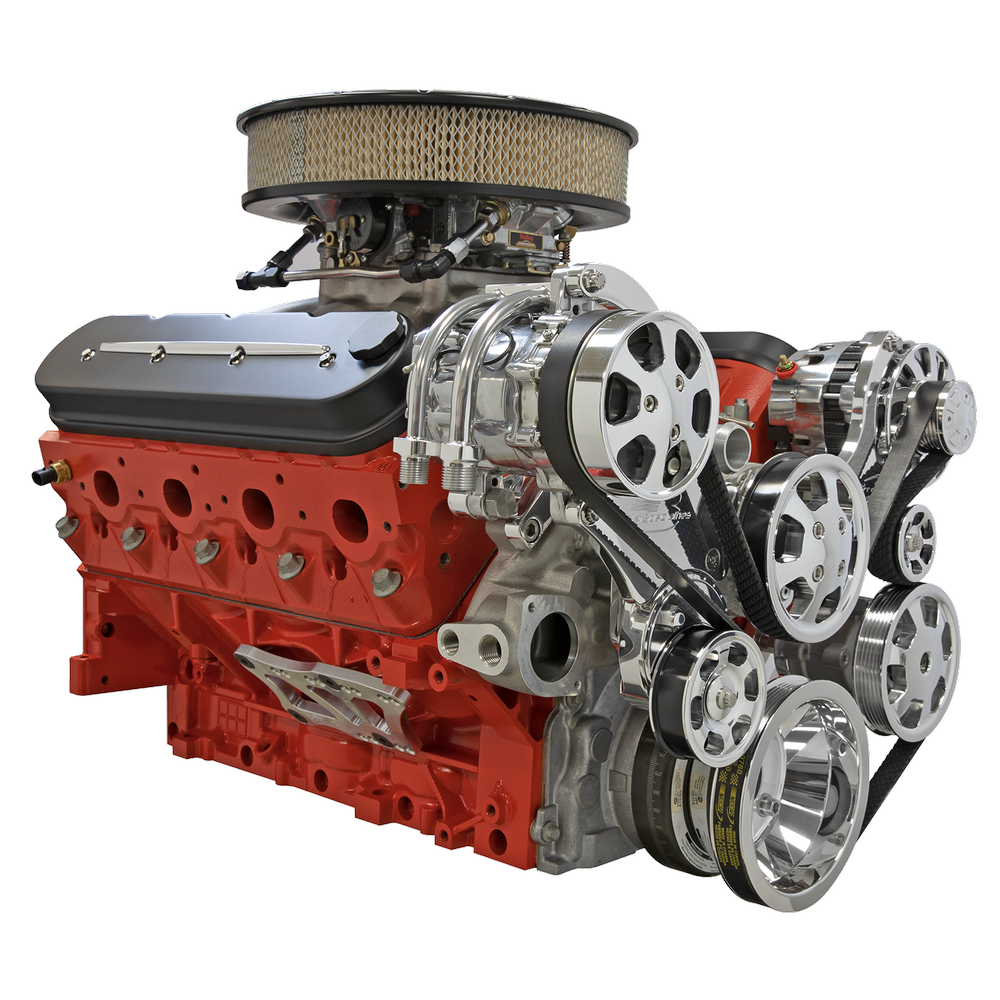

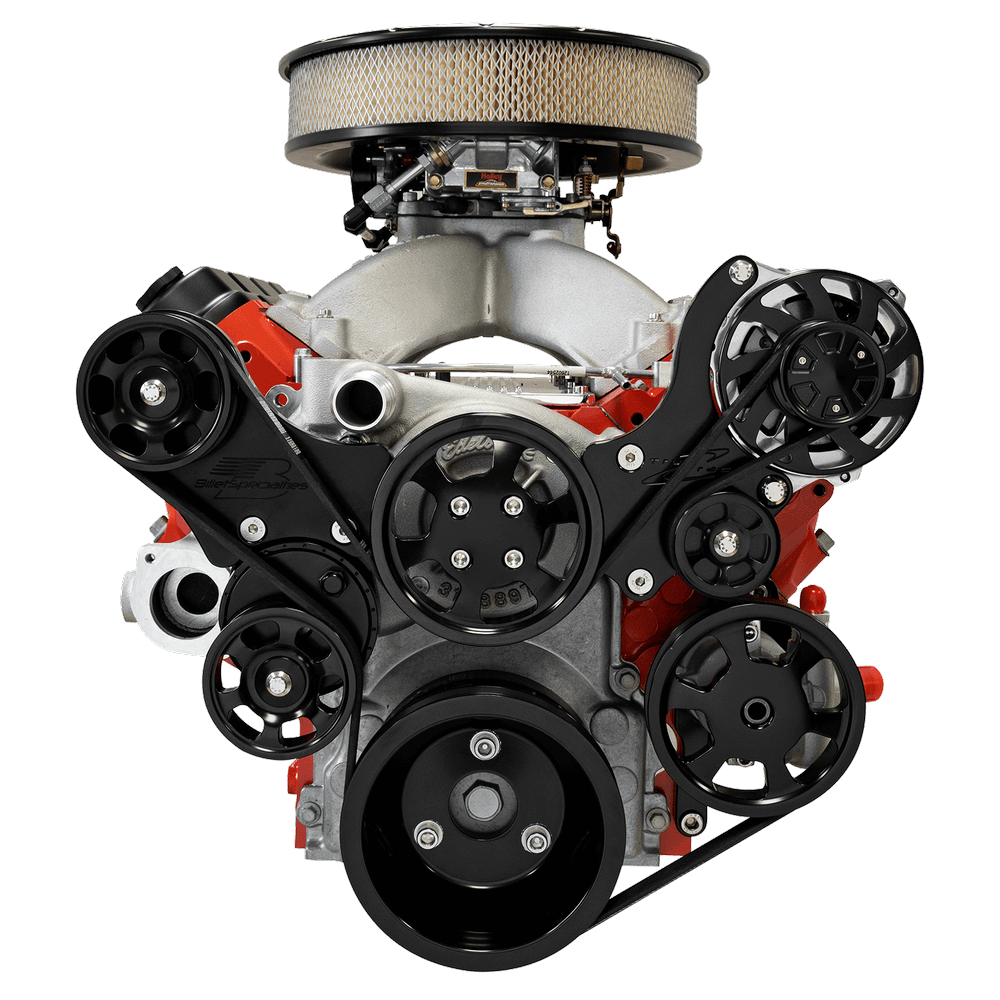

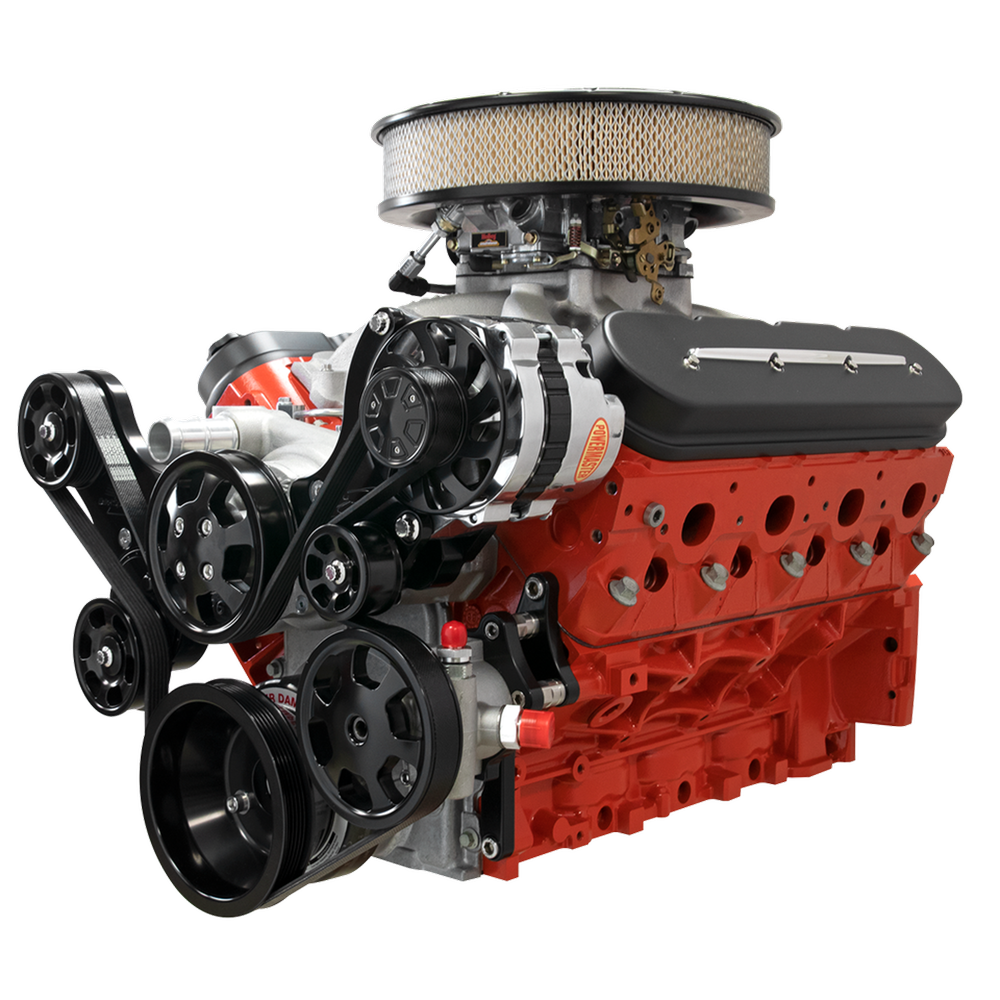

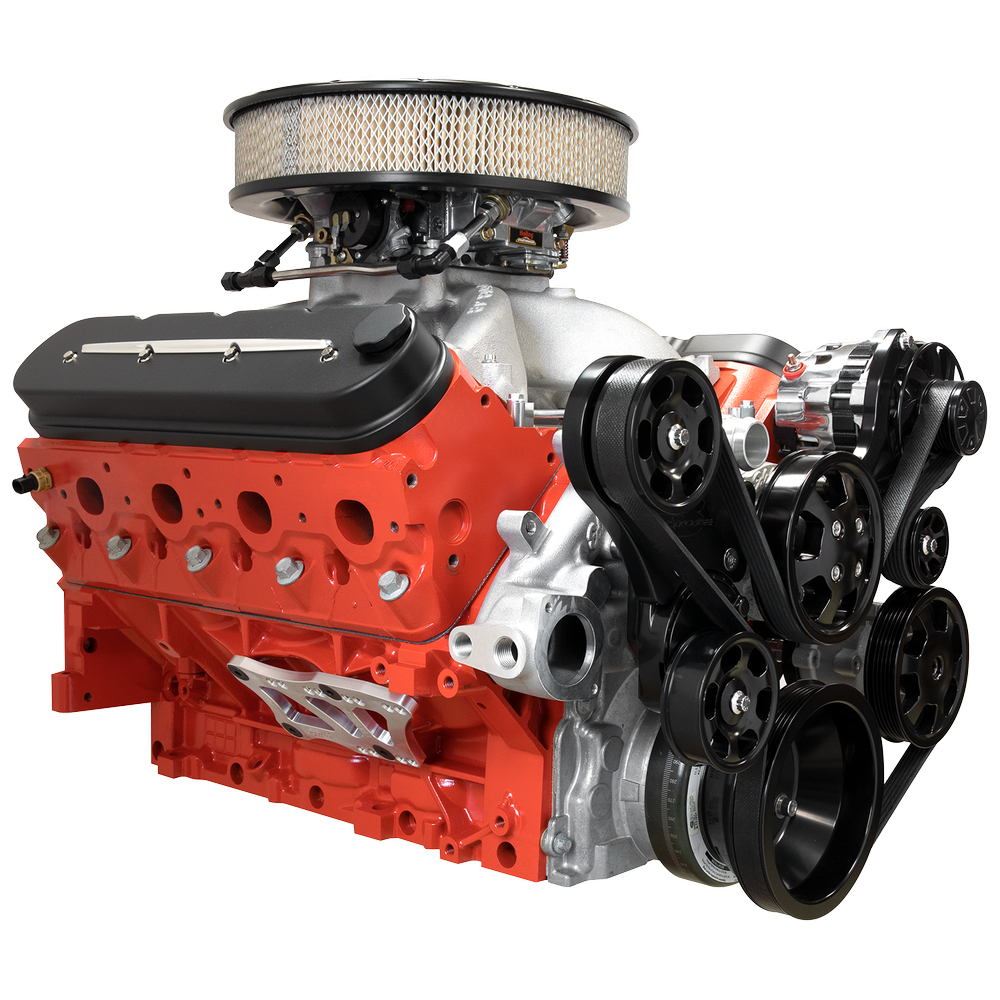

The LS platform is raising the bar in muscle car performance and keeping pace with this new standard is Billet Specialties LS Tru Trac. Engineered to clear cross members and steering boxes in most muscle cars while keeping a tight profile to the engine block. This all in one box kit includes a crank damper from ATI and the all-new Edelbrock LS water pump. Standard high-performance components include a 170 amp Powermaster alternator and Genuine Sanden AC compressor while Billet Specialties brackets and pulleys keep it all spinning in style under constant tension of our proprietary billet aluminum belt tensioner. Need extra Amps? See our LS Tru Trac with high performance alternator(BLK13450HP).

Tru Trac Systems For LS1 2 3 6 Chevy (Top Mount) Include:

Polished Powermaster 170 amp 1-wire alternator
Billet aluminum 1pc. alternator fan & pulley
Natural finish Edelbrock LS water pump
Billet aluminum water pump pulley
Billet aluminum bridge bracket
Patent-pending billet aluminum tensioner engineered specifically for the Tru Trac system
Billet aluminum tensioner pulley
ATI Super Damper for LS
Billet aluminum crankshaft pulley
Polished ARP 12-point stainless steel fasteners
Continental serpentine belt
Comprehensive installation manual

Kits with AC include:

Polished Sanden SD-7 compressor
Billet AC compressor clutch cover
Patented billet compressor manifold

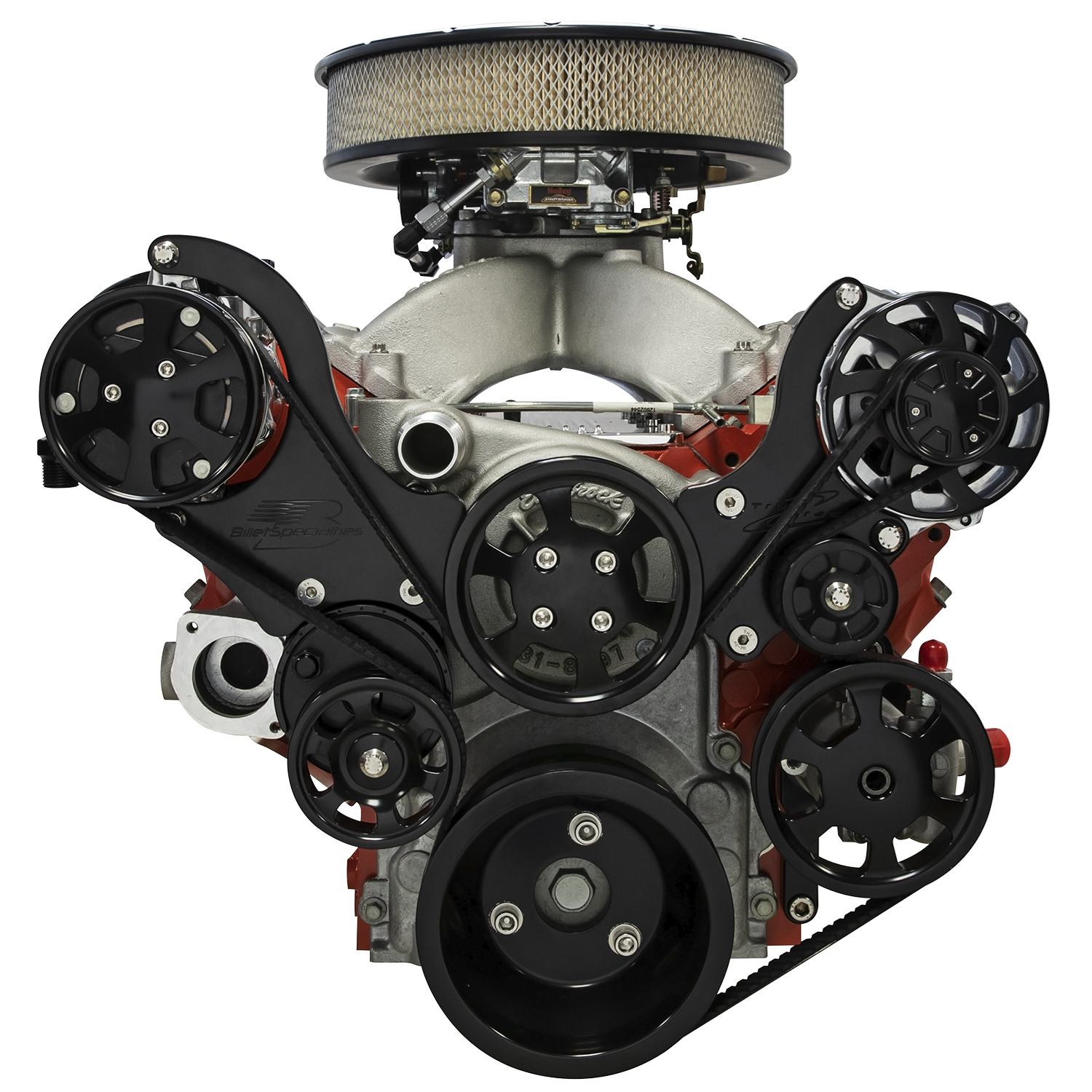

Kits with Power Steering include:

Natural finish power steering pump with AN fittings
Billet aluminum power steering pulley

Note: Tru Trac systems are not designed for use with hydro boost brake systems.

**Important: Does not work with Variable Valve Timing Motors (VVT).**

Need extra Amps? See our LS Tru Trac with high performance alternator.

Click here to download instructions for kits with AC

Click here to download instructions for kits without AC

Important

Tru Trac systems are NOT designed to be compatible with any specific brand or type of forced induction. Please contact the supercharger or turbocharger manufacturer to check for compatibility with the Billet Specialties Tru Trac System before ordering.

Shipping & Returns

Tru Trac Serpentine systems are shipped via ground service only, a Direct Signature is required.

Opened box Tru Trac Systems are NOT RETURNABLE.

Warranty

All Tru Trac System components are warranted to the original owner for one (1) year from the date of purchase. Please refer to the printed warranty included with your Tru Trac kit for warranty claim details.
